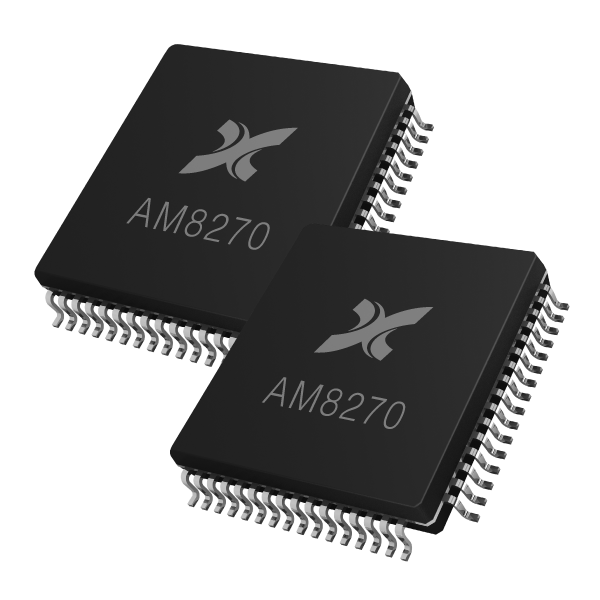

Display Ethernet extender chipset. The display encoder encodes the display and converts it into the Ethernet signal, while the display decoder receives the Ethernet signal and decodes it back into the display signal.
．Cooperated with external chip for 4K 60P input
．1080 60P display Ethernet extender solution
．Transmitter + Receiver pair
．Supports EDID, HDCP pass-through
．Supports IR, UART, Audio, KVM over Ethernet
．Supports many-to-many display
ProAV Display Ethernet Extender, supporting one-to-many splitting mode and many-to-many matrix mode, equipped with functions like IR, UART, KVM over IP, etc. Simultaneously supporting CMS central control system and iKVM control software.
Premium 1080 60P commercial display extender supporting one-to-many, many-to-one, and many-to-many modes. With embedded 10/100/Gb Ethernet PHY, low bandwidth requirement of display compression technology enables transmission ranges of up to 200 meters. Additionally, the chipset also supports IR, UART, KVM, Audio over IP.
Up to 4K 60P (External chip)
Built-in 10/100/1000 Mbps Ethernet PHY, supporting up to 200 meters
Display Encoder (TX Transmitter) and Display Decoder (RX Receiver)
DisplayPass Protocol：100ms Latency
External DDR3
Supports loop-out
DC 12V / 1A
200 meters
EDID feedback, HDCP pass-through; Supports IR, UART, KVM, audio pass-through
