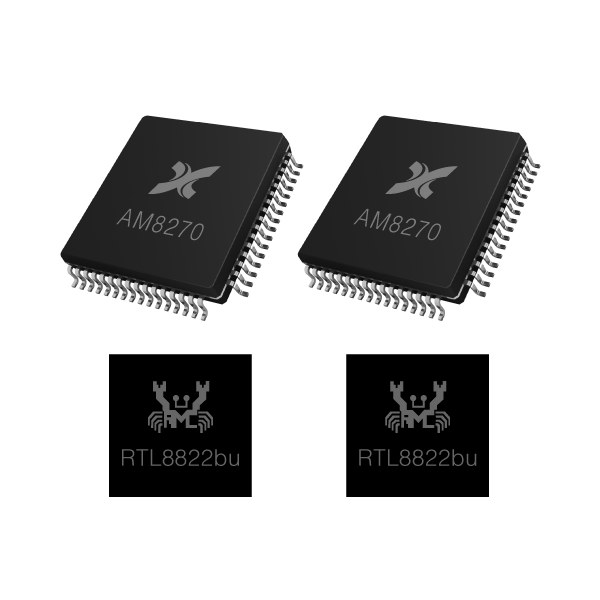

AM8270+RTL8822bu to AM8270+RTL8822bu Chipset

Wireless Display Bridge Chipset. The display encorder encodes the display and converts it into WiFi signals, which are then display decoder by the receiver, decoded, and transformed back into display signals.

．4K 60P IN with external chip
．1080 60P display transmission solution
．Transmitter + Receiver pair
．WiFi 5 2x2 with PA
．200 meters peer-to-peer wireless transmission
．EDID, and HDCP pass-through
．Supports IR, UART, Audio, KVM over WiFi pass-through
．Supports 1-to-4, 4-to-1

Contact Sales

Display Wi-Fi Bridge

ProAV wireless peer-to-peer display product supporting 1-to-many Splitter mode, many-to-1 Switch mode, IR, UART, KVM over IP compatibility, CMS central control system support, and cooperated with iKVM control software.

Professional industrial and commercial display wireless transmission

Supports 1080 60P display transmission and delivers more image details and color performance to the large screen. Offers comprehensive commercial-grade settings, supporting both one-to-many and many-to-one functionalities. Equipped with a 2x2 WiFi 5 module for over 200 meters of transmission distance and providing plug-and-play convenience. Supports Central Management System (CMS) and iKVM and also supports IR, UART, KVM, and Audio pass-through over WiFi.

Specification

Resolution

1080P

Transmission module

WiFi with PA, 2x2, 200-meter transmission

Chip Type

Display encoder (TX) + display decoder (RX) + wireless module

Transmission Protocols

DisplayPass Protocol：100ms Latency

Memory Type

External DDR3

Video Input Interface

HD Display

Video Output Interface

Supports loop-through

Power Specifications

DC 12V / 1A

Wireless Transmission Distance

200 meters

Additional Features

EDID, HDCP pass-through
