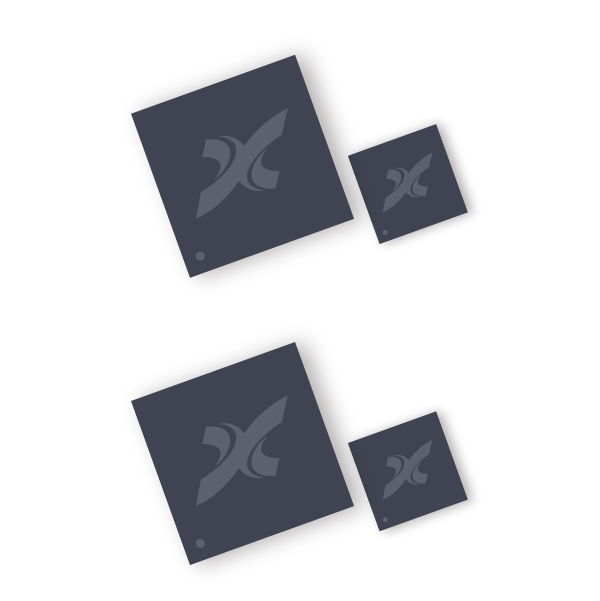

AM8360D+AM9421 to AM8268H+AM9421 Chipset

Full-spec transmission and reception wireless bridging chipset. The display encoder encodes the display signal into the WiFi signal, which is then received by the display decoder, decoded, and converted back into the display signal.

．1080 60P display transmission solution
．Transmitter and Receiver pair
．Cooperated with in-house developed 5GHz WiFi and AM9421 modules
．Peer-to-peer wireless transmission
．Supports CSA frequency hopping, EDID, and HDCP pass-through
．Receiver supports network-free Airplay and Miracast mirroring.

Contact Sales

Display Wi-Fi Bridge

Peer-to-peer wireless display functionality, with the receiver supporting network-free Airplay and Miracast standard protocols.

No installation required, effortlessly replaces traditional display cables. Receiver supports network-free Airplay/Miracast mirroring.

Transmitter supports 1080 60P HD display and Type C (paired with AM9361) transmission. Compact packaging with built-in DDR, cooperated with in-house developed AM9421 module offers the transmission distance of 50 meters. The receiver simultaneously supports network-free Airplay and Miracast standard protocols.

Specification

Resolution

Up to 1080 60P

Transmission module

In-house developed AM9421 WiFi T3 module

Chip Type

Display encoder (TX) + display decoder (RX) + wireless module

Transmission Protocols

DisplayPass Protocol：50ms Latency

Memory Type

Built-in DDR, ultra-compact packaging

Video Input Interface

Type-C / HD Display

Power Specifications

DC 5V / 0.5A

Wireless Transmission Distance

50 meters

Additional Features

EDID, HDCP pass-through, CSA channel optimization
