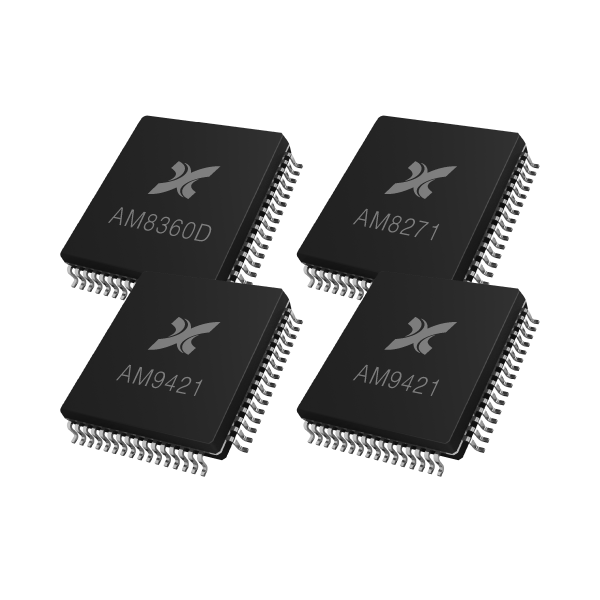

AM8360D+AM9421 to AM8271+AM9421 Chipset

Wireless Display Bridge Chipset. The display encoder encodes the display and converts it into WiFi signals, which are then received by the display decoder, decoded, and transformed back into display signals.

．4K 30P Display Transmission Solution
．Transmitter + Receiver Pair
．Cooperated with with in-house 5GHz WiFi AM9421
．Peer-to-peer Wireless Transmission
．Supports CSA frequency hopping, EDID, and HDCP pass-through
．supports network-free Airplay and Miracast mirroring

Contact Sales

Display Wi-Fi Bridge

Peer-to-peer wireless display functionality, with the receiver simultaneously supporting network-free Airplay and Miracast standard protocols.

No installation required, effortlessly replaces traditional display cables.

Supports 4K 30P resolution, equipped with HD display and Type-C (paired with AM9361) functionality. Capable of transmitting high-resolution display to the large screen, delivering more image detail and color performance. Compact packaging with built-in memory, cooperated with in-house developed AM9421 RF chip achieves the transmission distance of 50+ meters. Plug-and-play, no need for app installation or Wi-Fi configuration. The receiver simultaneously supports network-free Airplay and Miracast mirroring.

Specification

Resolution

Up to 4K 30P

Transmission module

In-house developed AM9421 WiFi T3 module

Chip Type

Display encoder (TX) + display decoder (RX) + wireless module

Transmission Protocols

DisplayPass Protocol: 1080P 60ms Latency, 4K 30P 110ms Latency

Memory Type

Built-in DDR, ultra-compact packaging

Video Input Interface

Type-C / HD Display

Power Specifications

DC 5V / 1A

Wireless Transmission Distance

50 meters

Additional Features

EDID, HDCP pass-through, CSA channel optimization
