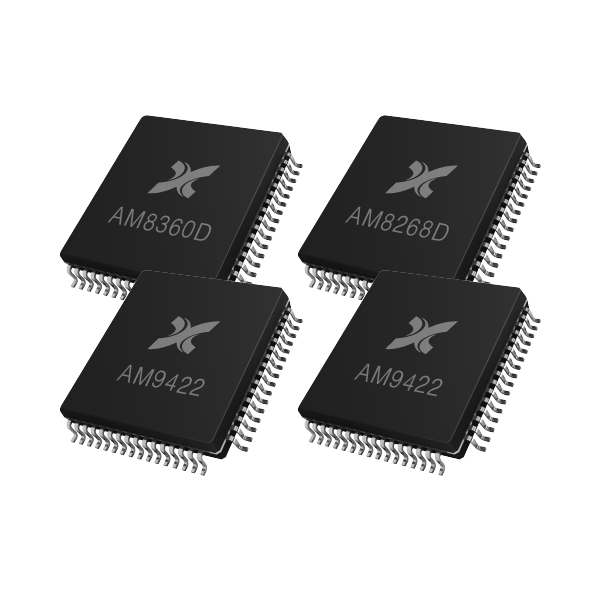

AM8360D+AM9422 to AM8268D+AM9422 Chipset

Full-spec wall-crossing transmission and reception wireless bridging chipset. The display encoder encodes the display signal into the WiFi signal, which is then received by the display decoder, decoded, and converted back into the display signal.

．1080 60P display transmission solution
．Transmitter and Receiver pair
．Cooperated with in-house developed 5GHz WiFi AM9422 modules
．Peer-to-peer wireless transmission
．Supports CSA frequency hopping, EDID, and HDCP pass-through

Contact Sales

Display Wi-Fi Bridge

Wall-Crossing peer-to-peer wireless display functionalities

No installation required, effortlessly replaces traditional display cables.

Transmitter supports 1080 60P HD display and Type C (paired with AM9361) transmission. Compact packaging with built-in DDR, cooperated with in-house developed AM9422 module offers the wall-crossing transmission distance of 100 meters.

Specification

Resolution

Up to 1080 60P

Transmission module

In-house developed AM9422 T10 module

Chip Type

Display encoder (TX) + display decoder (RX) + wireless module

Transmission Protocols

DisplayPass Protocol：50ms Latency

Memory Type

Built-in DDR, ultra-compact packaging

Video Input Interface

Type-C / HD Display

Power Specifications

DC 5V / 0.5A

Wireless Transmission Distance

Wall-crossing 100 meters

Additional Features

EDID, HDCP pass-through, CSA channel optimization
