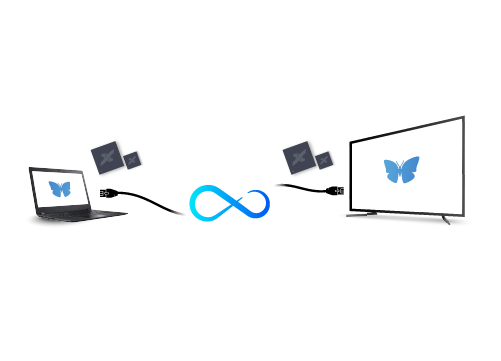

Display Ethernet extender chipset. The display encoder encodes the display and converts it into the Ethernet signal, while the display decoder receives the Ethernet signal and decodes it back into the display signal.
．1080 60P display Ethernet extender solution
．Transmitter + Receiver pair
．Supports EDID, HDCP pass-through
．Supports UART over Ethernet
．Supports many-to-many display
ProAV Display Ethernet Extender, supporting one-to-many splitting mode and many-to-many matrix mode with UART over Ethernet.
Cost-effective 1080 60P commercial display extender supporting one-to-many, many-to-one, and many-to-many modes. Cooperated with an external 10/100M Ethernet PHY, low bandwidth requirement of display compression technology enables transmission ranges of up to 150 meters. Additionally, it supports UART pass-through for controllability extension.
Up to 1080 60P
External 10M/100M Ethernet PHY, supporting up to 150 meters.

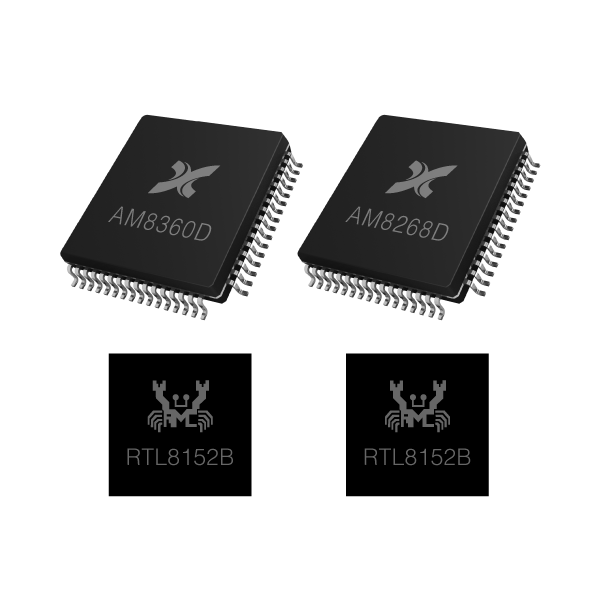

Display Encoder (TX Transmitter) and Display Decoder (RX Receiver)
DisplayPass Protocol：50ms Latency
Built-in DDR, extremely compact packaging.
DC 5V / 1A
150 meters
EDID feedback, HDCP pass-through; Supports UART pass-through
