Display Ethernet extender chipset. The display encoder encodes the display and converts it into the Ethernet signal, while the display decoder receives the Ethernet signal and decodes it back into the display signal.
．Zero lantancy 1080 60P display Ethernet extender solution
．Transmitter + Receiver pair
．200-meter Ethernet extension
．Supports EDID, HDCP pass-through
．Supports UART over Ethernet
．Supports many-to-many display
ProAV Display Ethernet Extension Solution, supporting one-to-many Splitter mode and many-to-many Matrix mode (requires specific switch setup). Additionally, the chipset supports UART over Ethernet.
Supports 1080 60P resolution, comprehensive commercial-grade zero lantancy display extender for one-to-many, many-to-one, and many-to-many modes. Cooperated with external Gb Ethernet PHY, enabling transmissions up to 200 meters. Additionally supports UART pass-through.
Up to 1080 60P

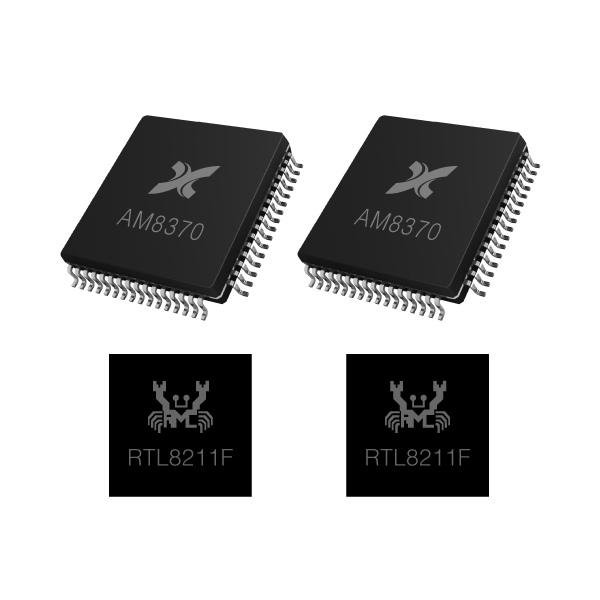

External Gb Ethernet PHY, supporting up to 200 meters.
Display Encoder (TX Transmitter) and Display Decoder (RX Receiver)
DisplayPass Protocol：0.2m Latency
DDR participation is not required
Supports loop-out
DC 5V / 0.5A
200 meters
EDID feedback, HDCP pass-through; Supports UART pass-through
